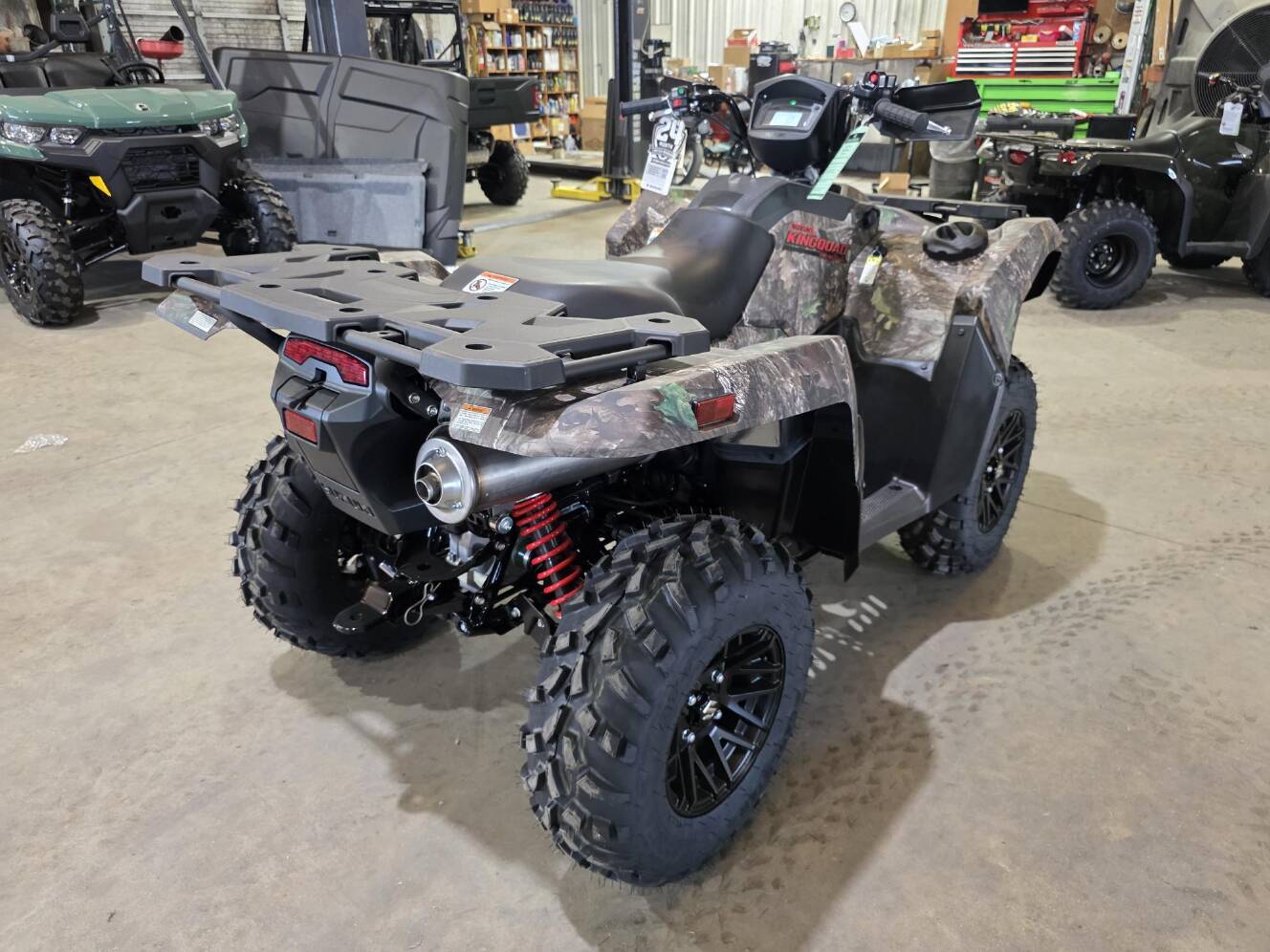

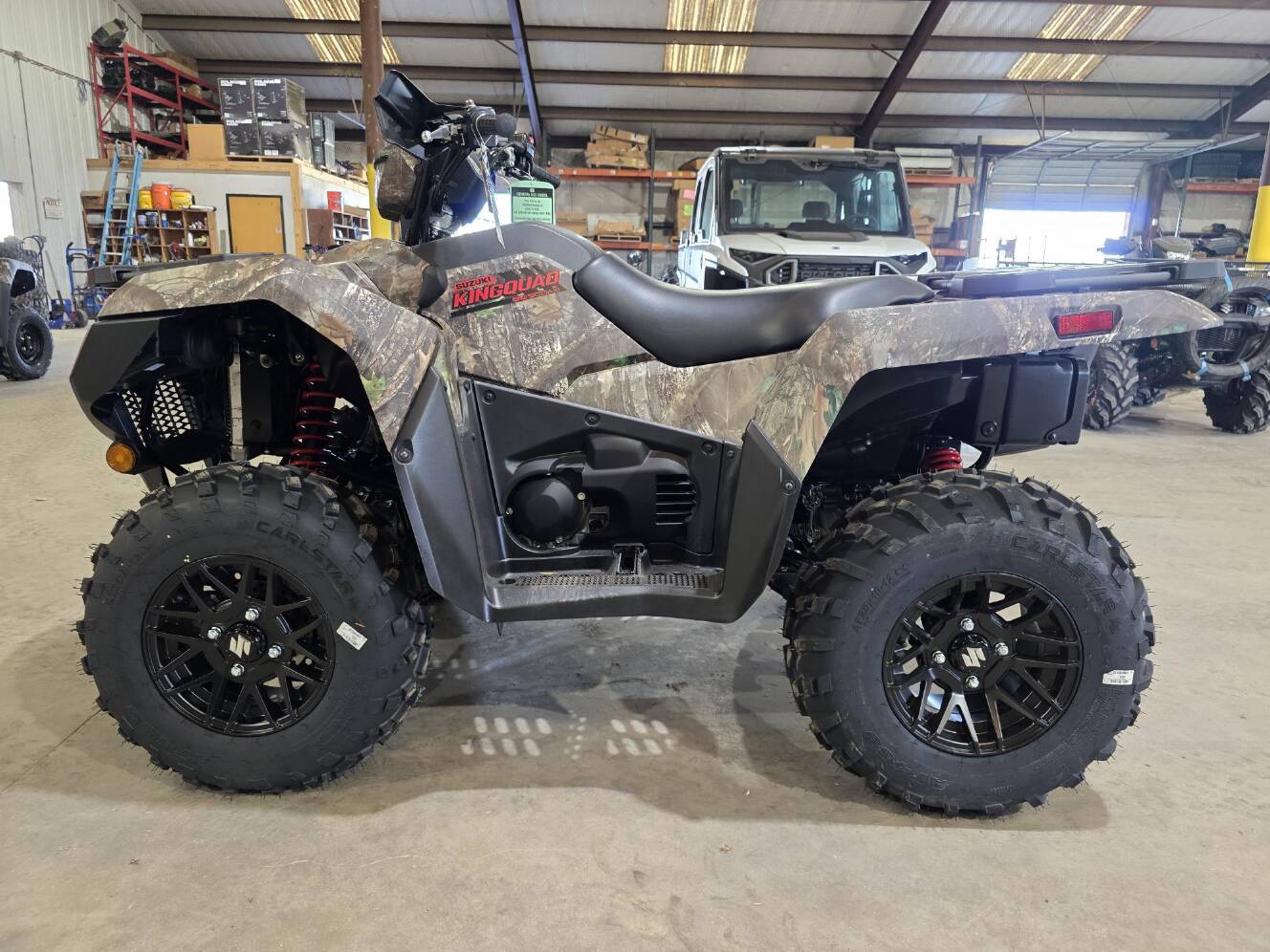

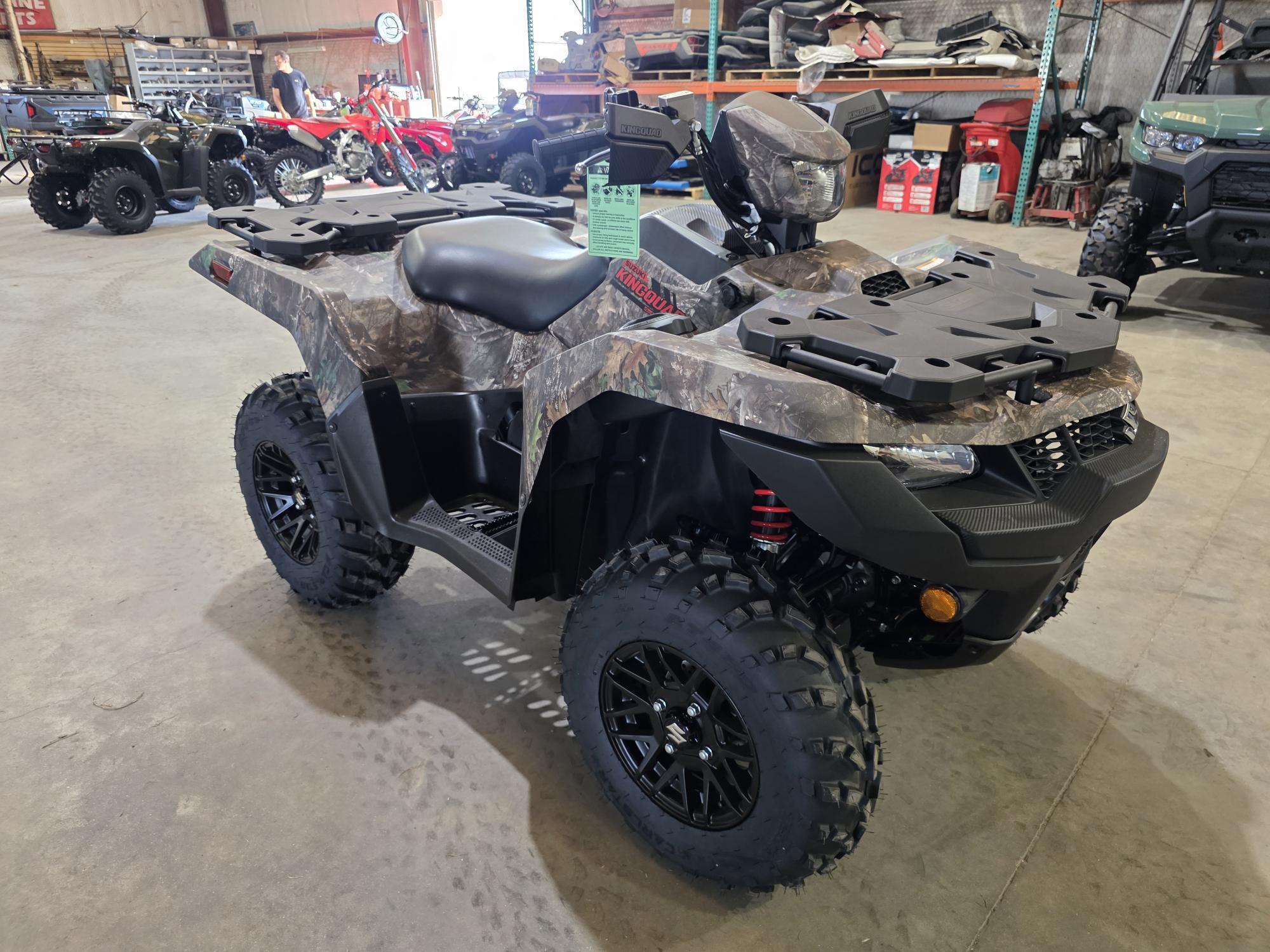

2025 Suzuki KingQuad 500 AXi Power Steering SE Camo,

Advertised price does not include sales tax (if applicable) or title and registration fees. See dealer for details.

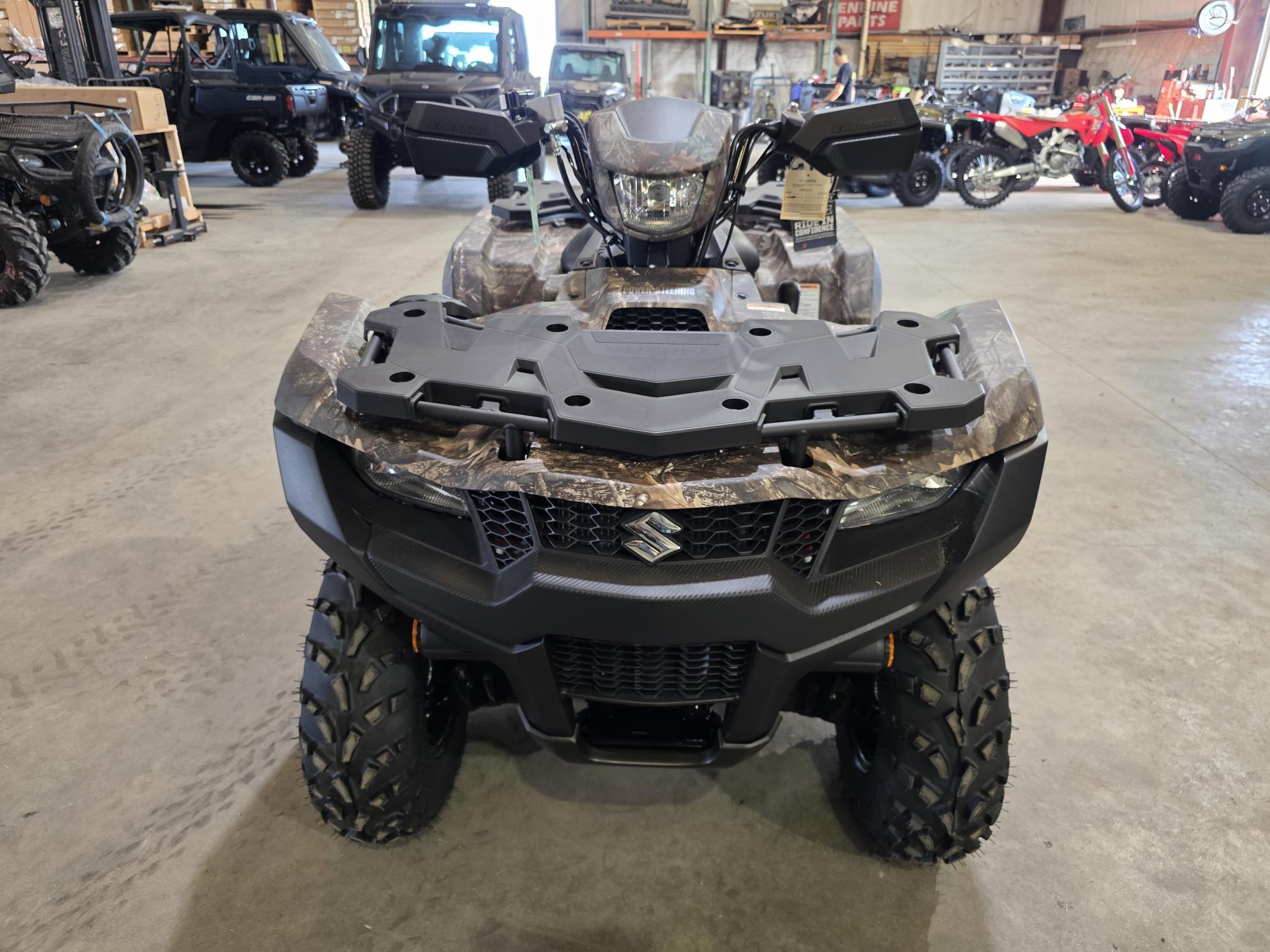

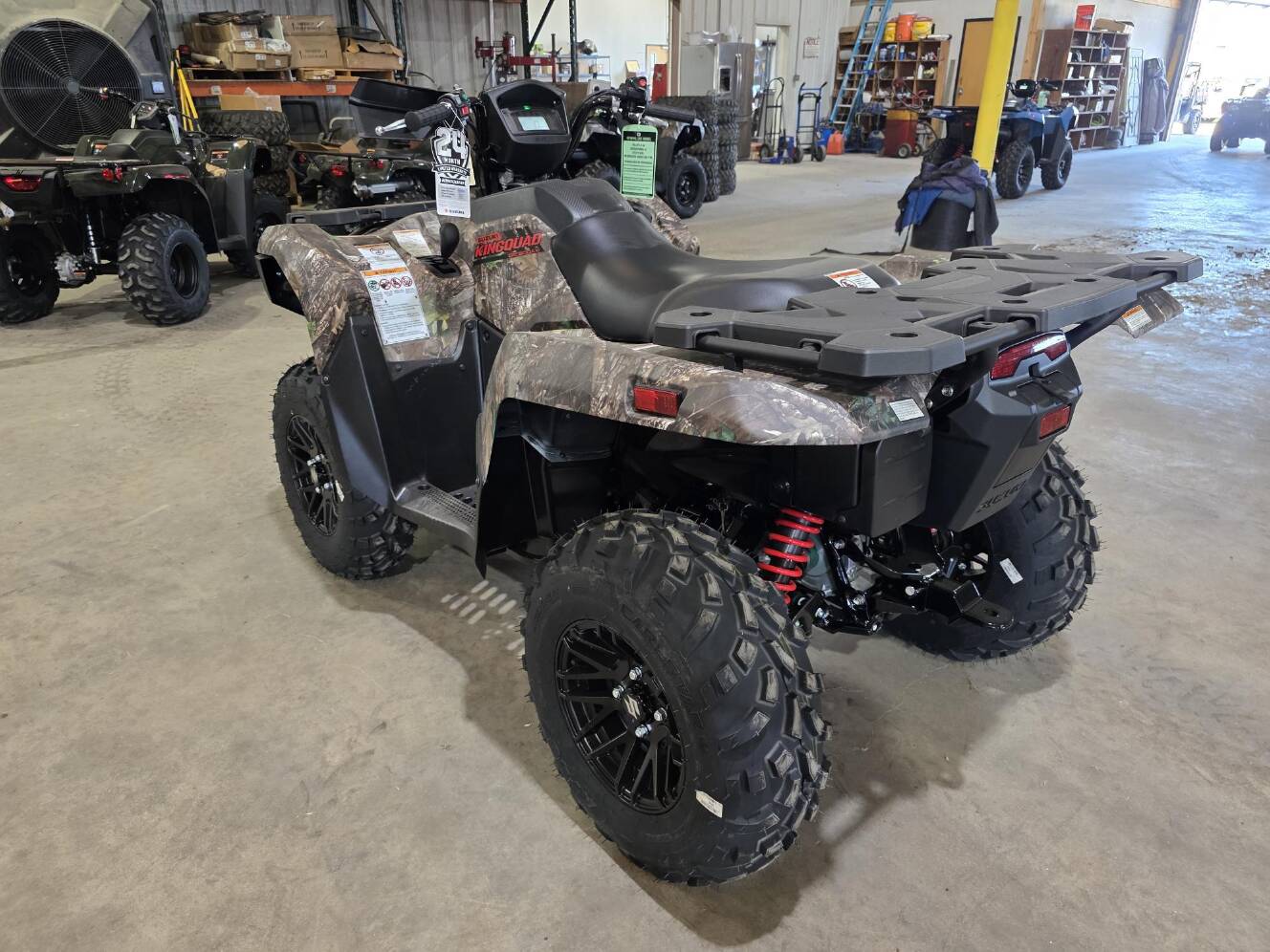

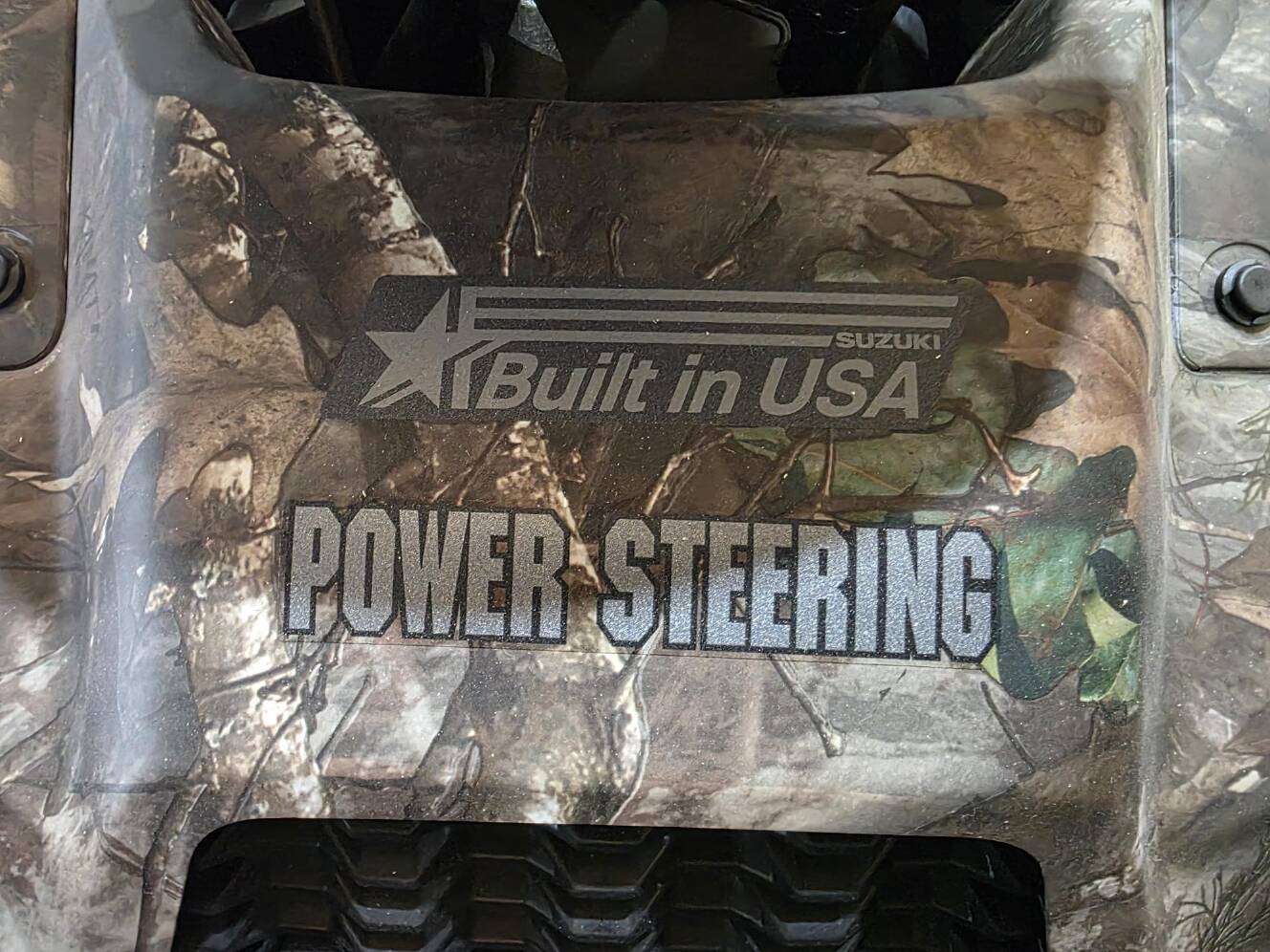

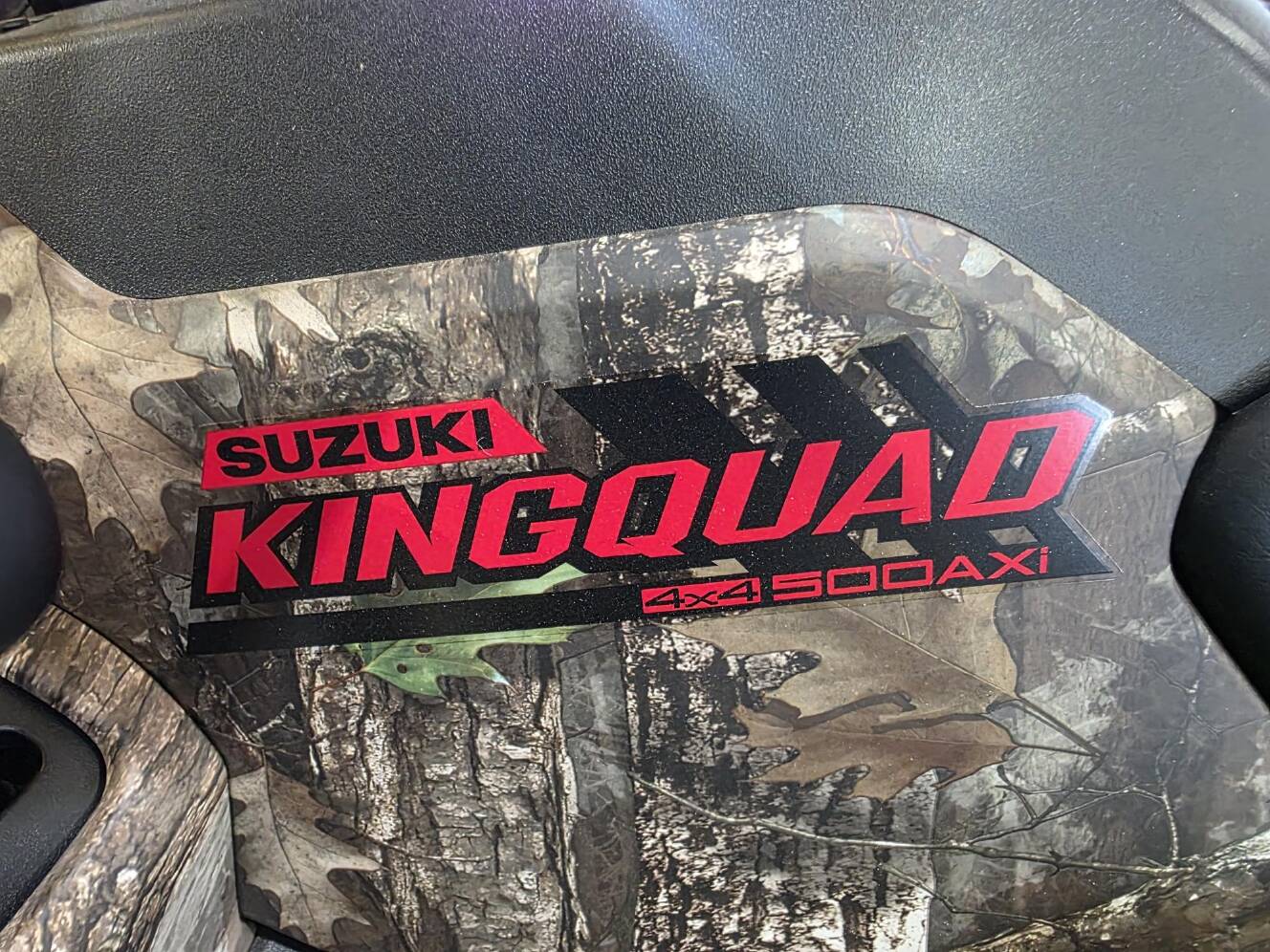

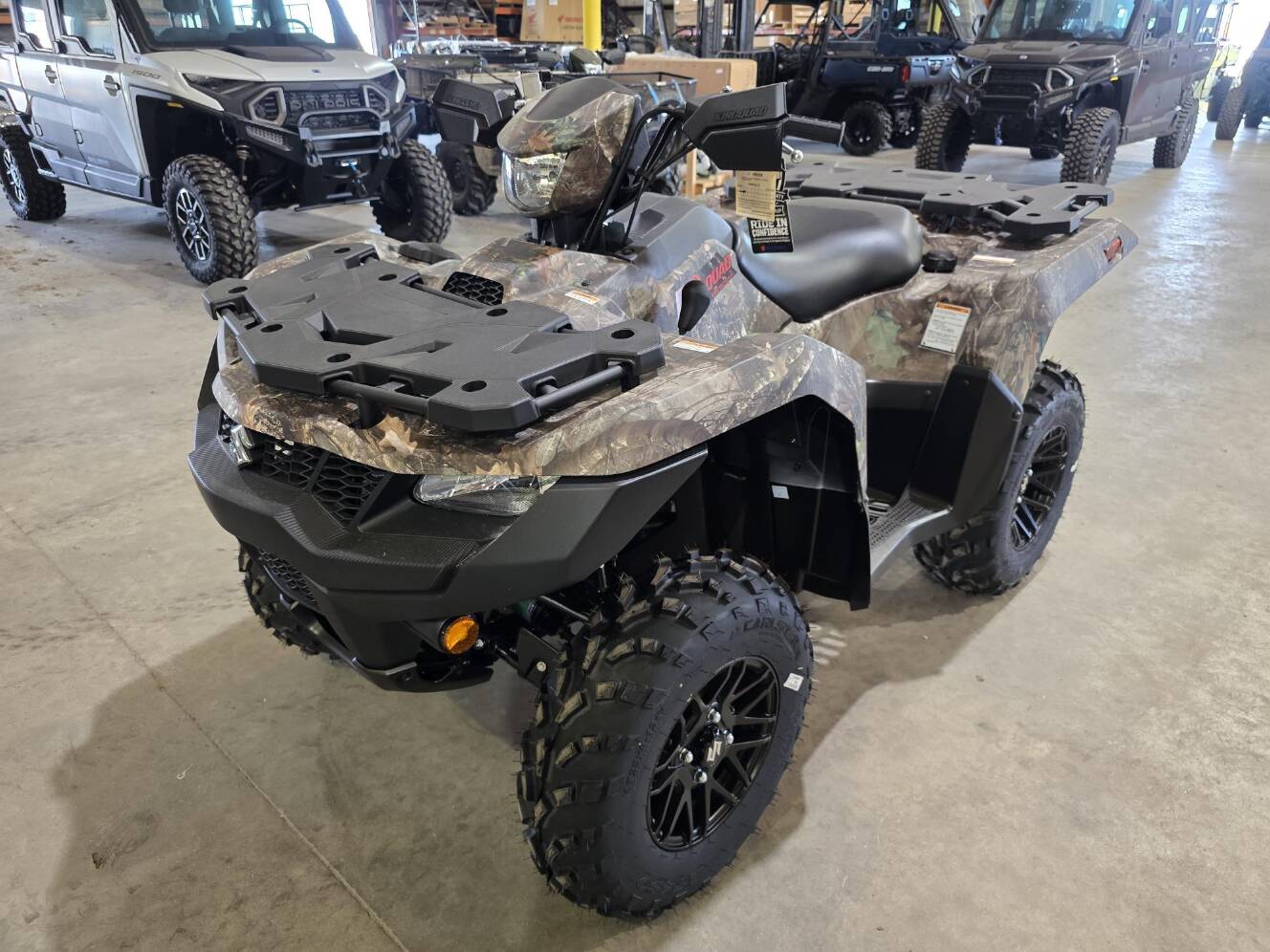

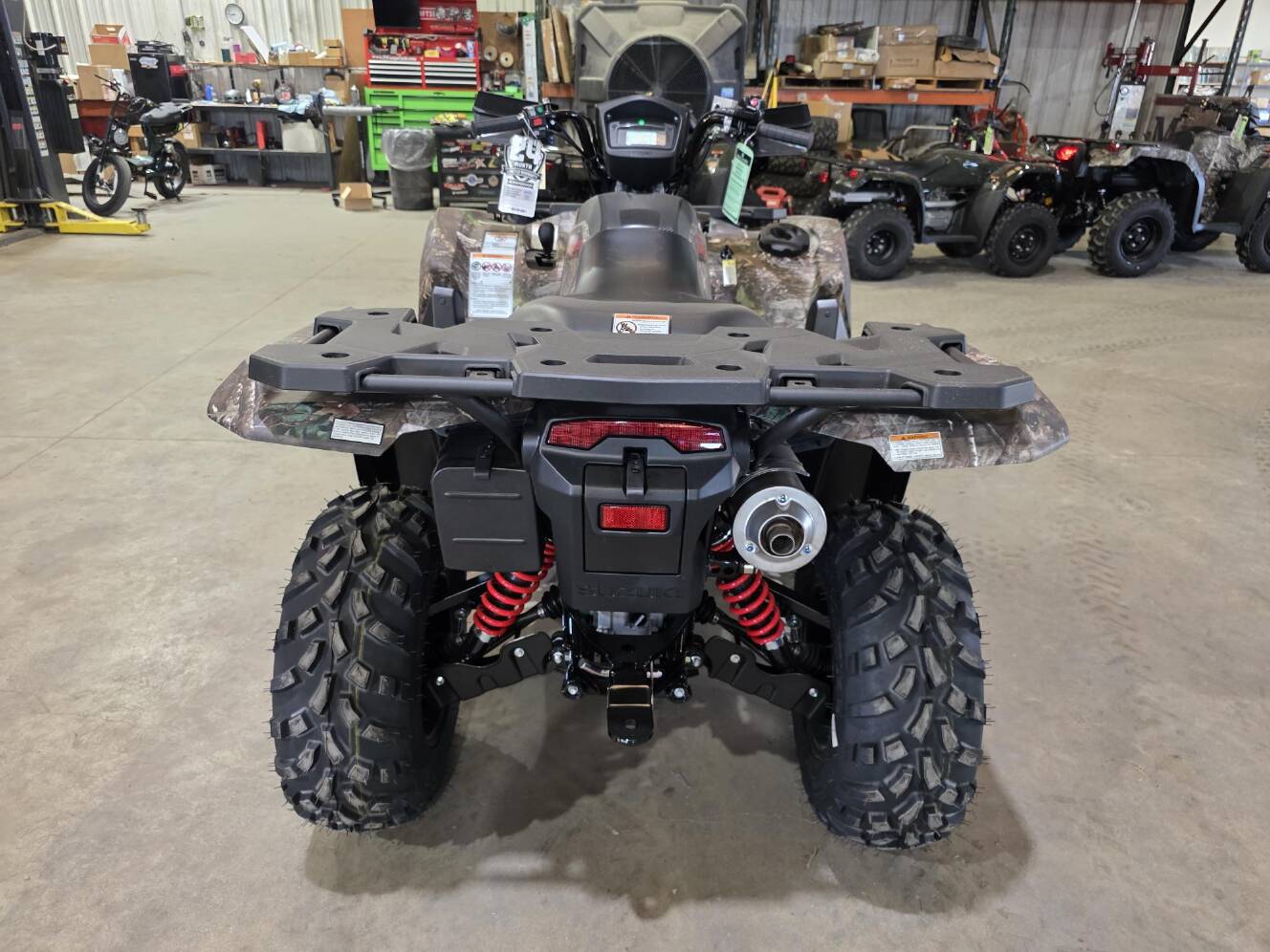

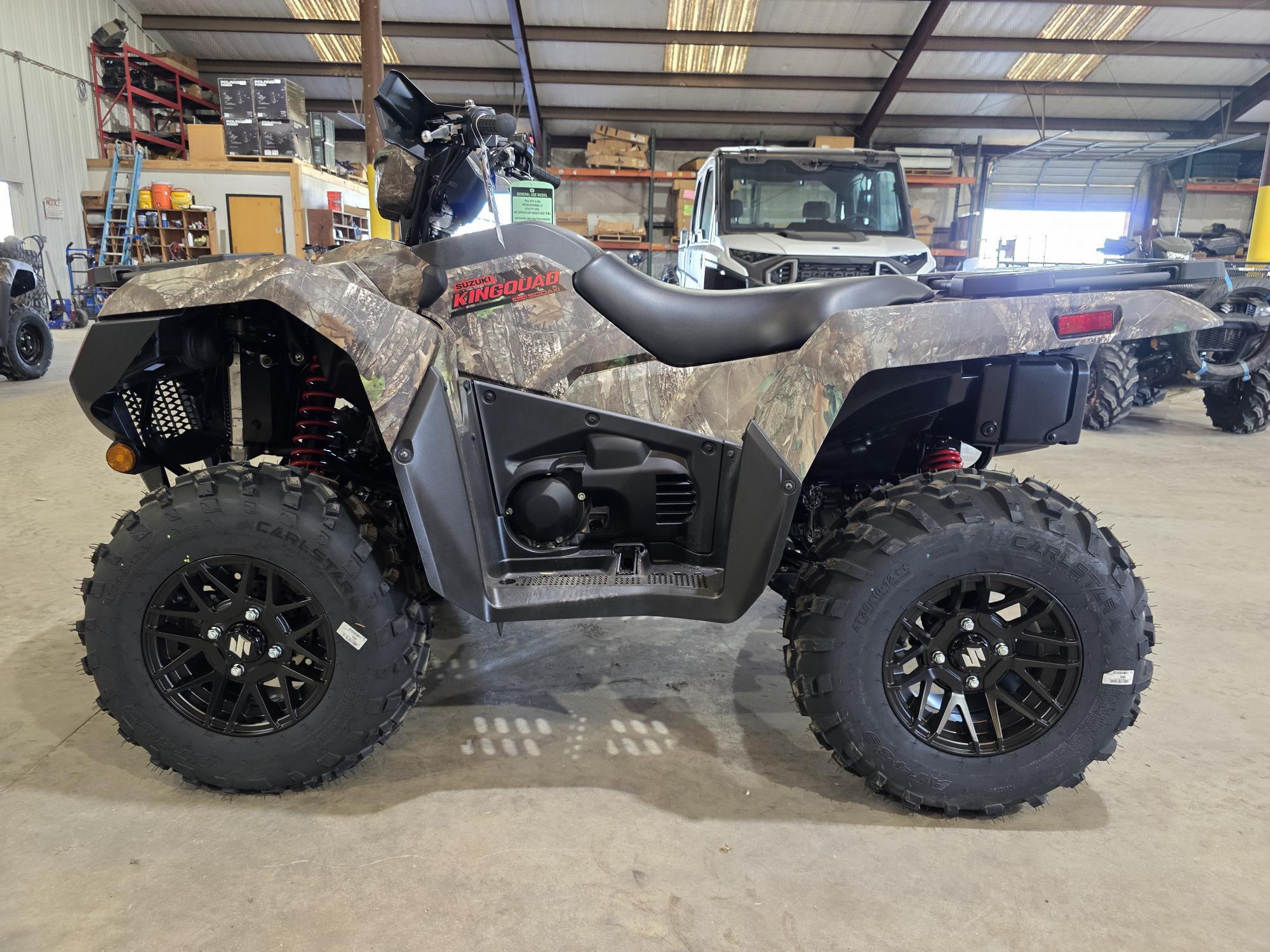

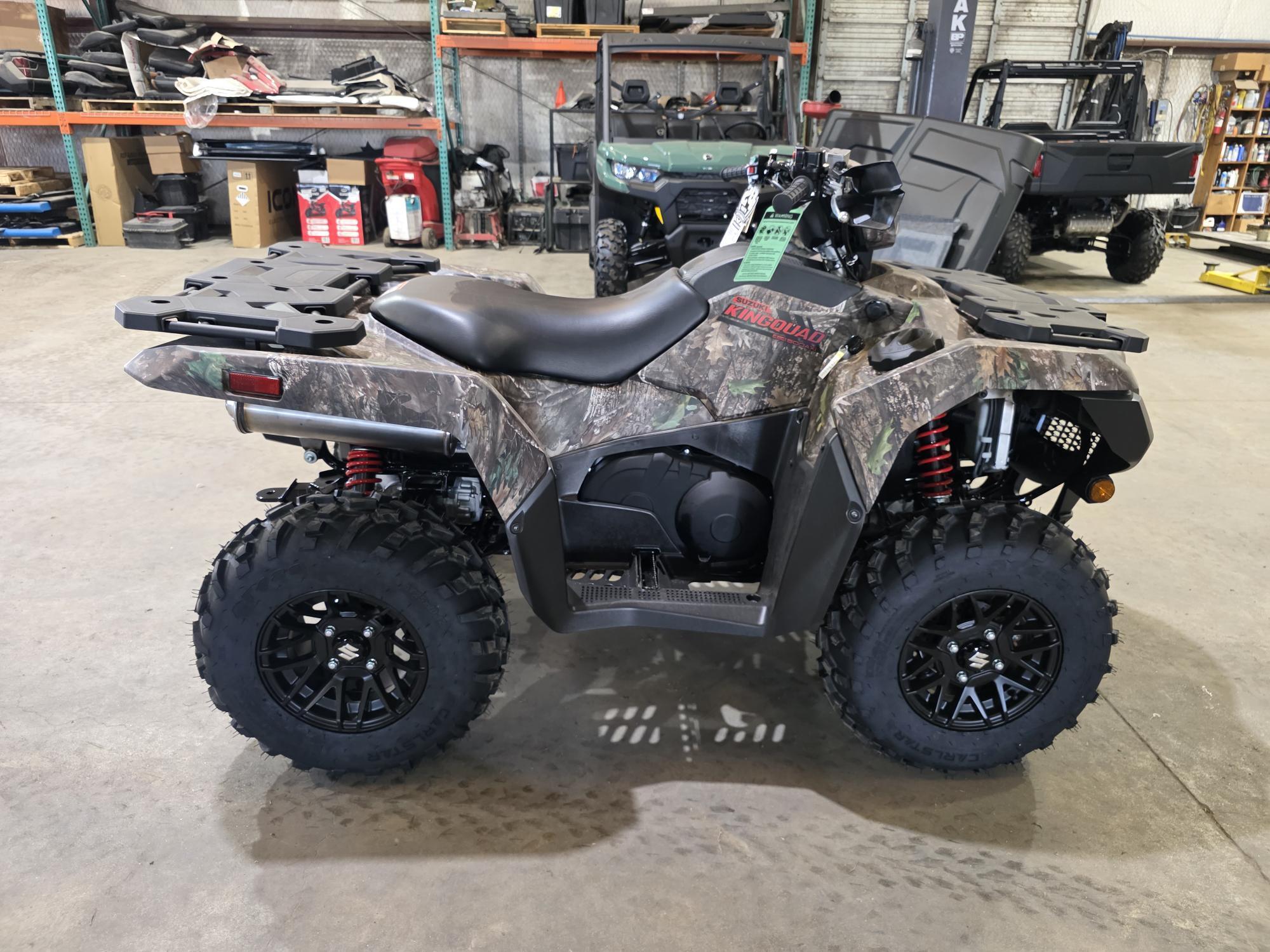

2025 KingQuad 500AXi Power Steering SE Camo

The KingQuad 500AXi Power Steering SE is not just an ATV, it's a KingQuad ATV.

-



-

Suzuki, the inventor of the 4-wheel ATV, has created the world’s best sports-utility quad with bold styling plus more capability and reliability than ever before. The legacy of the iconic KingQuad remains fresh and exciting and is ready for you to join its history. The KingQuad 500AXi Power Steering SE helps tackle challenging terrain with the capabilities that only a KingQuad possesses.

ENGINE

• Engine: 493cc (30.1 cubic in.), 4-stroke, liquid-cooled, 4-valve, OHC single cylinder
• Bore x Stroke: 87.5 mm x 82.0 mm (3.40 in. x 3.20 in.)
• Compression Ratio: 9.9:1
• Fuel System: Suzuki electronic fuel injection
• Starter: Electric
• Lubrication: Wet sump

DRIVETRAIN

• Transmission: Automatic variable ratio (V-belt), with high/low-range, and reverse
• Clutch: Dry shoe, automatic, centrifugal type
• Driven Wheels: 2WD, 4WD and 4WD Differential Lock
• Final Drive: Shaft drive

CHASSIS

• Suspension Front: Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
• Suspension Rear: Independent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
• Brakes Front: Disc brakes, twin rotors
• Brakes Rear: Sealed oil-bathed multi-disc
• Tires Front: AT25 x 8-12**, tubeless type x 2
• Tires Rear: AT25 x 10-12**, tubeless type x 2
• Fuel Tank Capacity: 17.5 L (4.6 US gal.)
• Color: Armored Blue Gray

ELECTRICAL

• Ignition: Electronic ignition (transistorized)
• Headlight: 12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar-mounted
• Tail Light: LED

DIMENSIONS

• Overall Length: 2150 mm (84.6 in.)
• Overall Width: 1215 mm (47.8 in.)
• Overall Height: 1285 mm (50.6 in.)
• Wheelbase: 1285 mm (50.6 in.)
• Ground Clearance: 260 mm (10.2 in.)
• Seat Height: 920 mm (36.2 in.)
• Curb Weight: 324 kg (714 lb.), 325 kg (716 lb.) CA model

Highlighted Features

• Engine Features: The powerful, 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to produce a wide powerband with strong top-end power. - - The compact four-valve cylinder head has large intake valves and straight intake ports for superb cylinder charging efficiency. Screw and nut valve lash adjusters simplify maintenance. - - Advanced Suzuki Fuel Injection improves throttle response and fuel efficiency while delivering power consistently across the full rev-range and improves engine starting in all co
