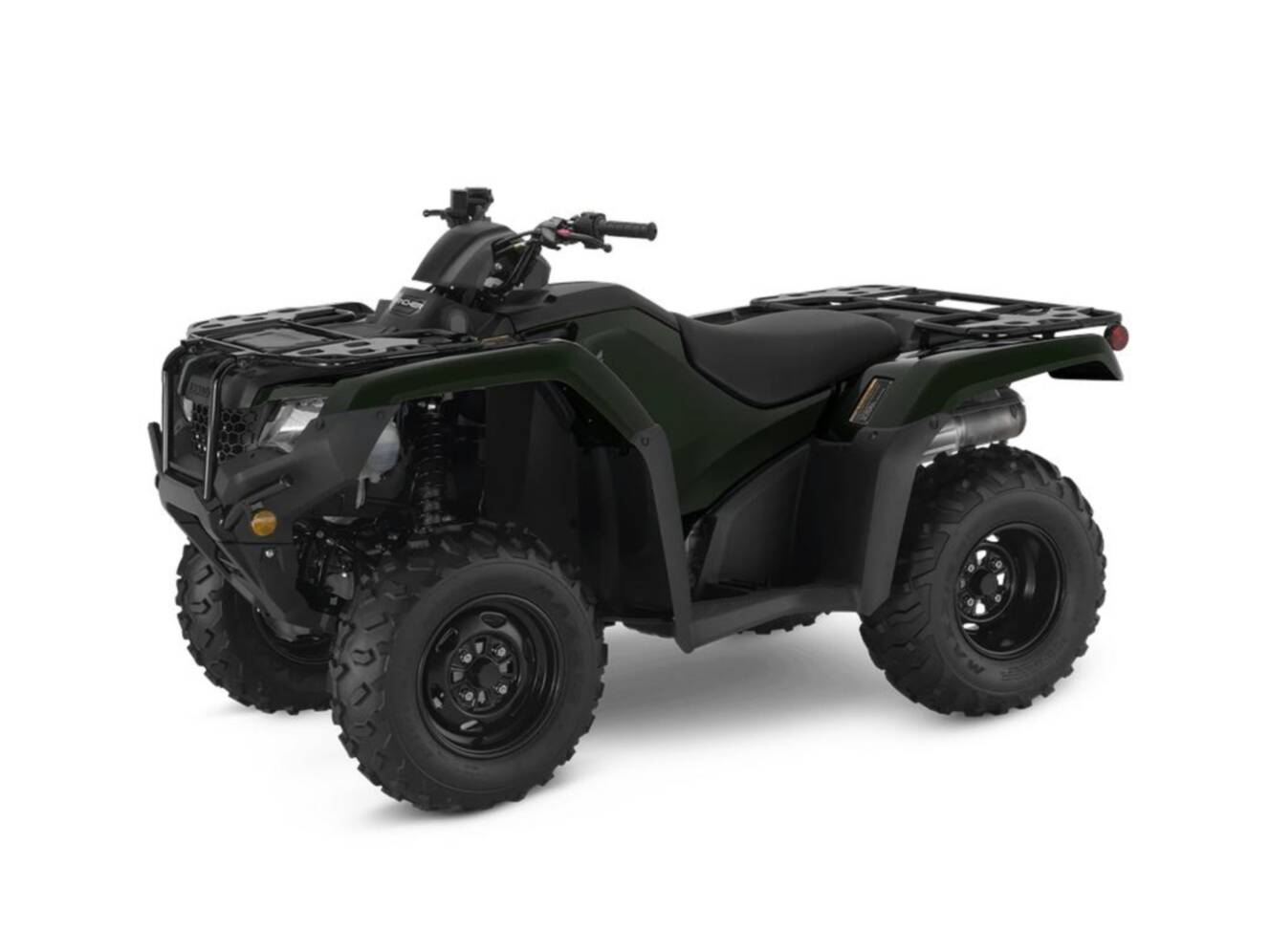

2026 Honda FourTrax Rancher, 2026 Honda FourTrax Rancher (TRX420TM1) Green

2026 Honda FourTrax Rancher is a legendary utility ATV built for dependable work and weekend trail time, and this brand-new Green Rancher is available now at MotoMember in Manassas, Virginia. With Honda s proven 420cc fuel-injected engine, a rugged chassis, and real-world towing and rack capacity, it s an ideal choice for property owners, hunters, and riders who want a machine that starts easy, runs clean, and holds up season after season.

Designed as a do-it-all ATV in Honda s lineup, the FourTrax Rancher balances manageable size with serious capability. The five-speed manual transmission with reverse gives you direct control on climbs, in mud, or while working around the farm, while the tight 9.2-foot turning radius helps you maneuver confidently in tight woods, around barns, or between job sites.

Key Features

- 420cc liquid-cooled Honda engine with longitudinal mounting for efficient power delivery and durability
- PGM-FI fuel injection (34mm throttle body) for crisp throttle response and reliable cold starts
- Five-speed manual transmission with reverse paired with an automatic clutch for smooth shifting and control
- Direct rear driveshaft driveline for low-maintenance, hard-working traction
- Independent double-wishbone front suspension and swingarm rear suspension, both with 6.7 inches of travel for comfort and stability
- Strong braking package with dual 190mm front discs and a 160mm rear drum
- Utility-ready cargo capacity: 66 lb front rack / 133 lb rear rack
- Serious towing capability rated up to 848 lb for trailers, yard equipment, and more
- Electric start with optional auxiliary recoil for added peace of mind
- EPA & CARB compliant off-road emissions standards

Specifications

- Model ID: TRX420TM1
- Engine: 420cc liquid-cooled longitudinally mounted single-cylinder four-stroke
- Valve Train: OHV; two valves per cylinder
- Bore x Stroke: 86.5mm x 71.5mm
- Compression Ratio: 9.9:1
- Fuel System: Programmed Fuel Injection (PGM-FI); 34mm throttle body
- Starter: Electric (optional auxiliary recoil)
- Transmission: Five-speed manual with reverse
- Clutch: Automatic
- Driveline: Direct rear driveshaft
- Front Suspension: Independent double-wishbone; 6.7-inch travel
- Rear Suspension: Swingarm with single shock; 6.7-inch travel
- Front Brakes: Dual 190mm discs
- Rear Brake: 160mm drum
- Front Tires: 24 x 8-12
- Rear Tires: 24 x 10-11
- Turning Radius: 9.2 ft
- Fuel Capacity: 3.9 gal (including 1.3-gal reserve)
- Wheelbase: 50.0 in
- Seat Height: 33.7 in
- Ground Clearance: 7.1 in
- Dimensions (L x W x H): 82.8 in x 47.4 in x 46.2 in
- Curb Weight: 580 lb (includes required fluids and full tank)
- Towing Capacity: 848 lb
- Rack Capacity: 66 lb front / 133 lb rear
- Warranty: Transferable one-year limited warranty (ex
