2026 Honda FourTrax Rancher, 2026 Honda FourTrax Rancher

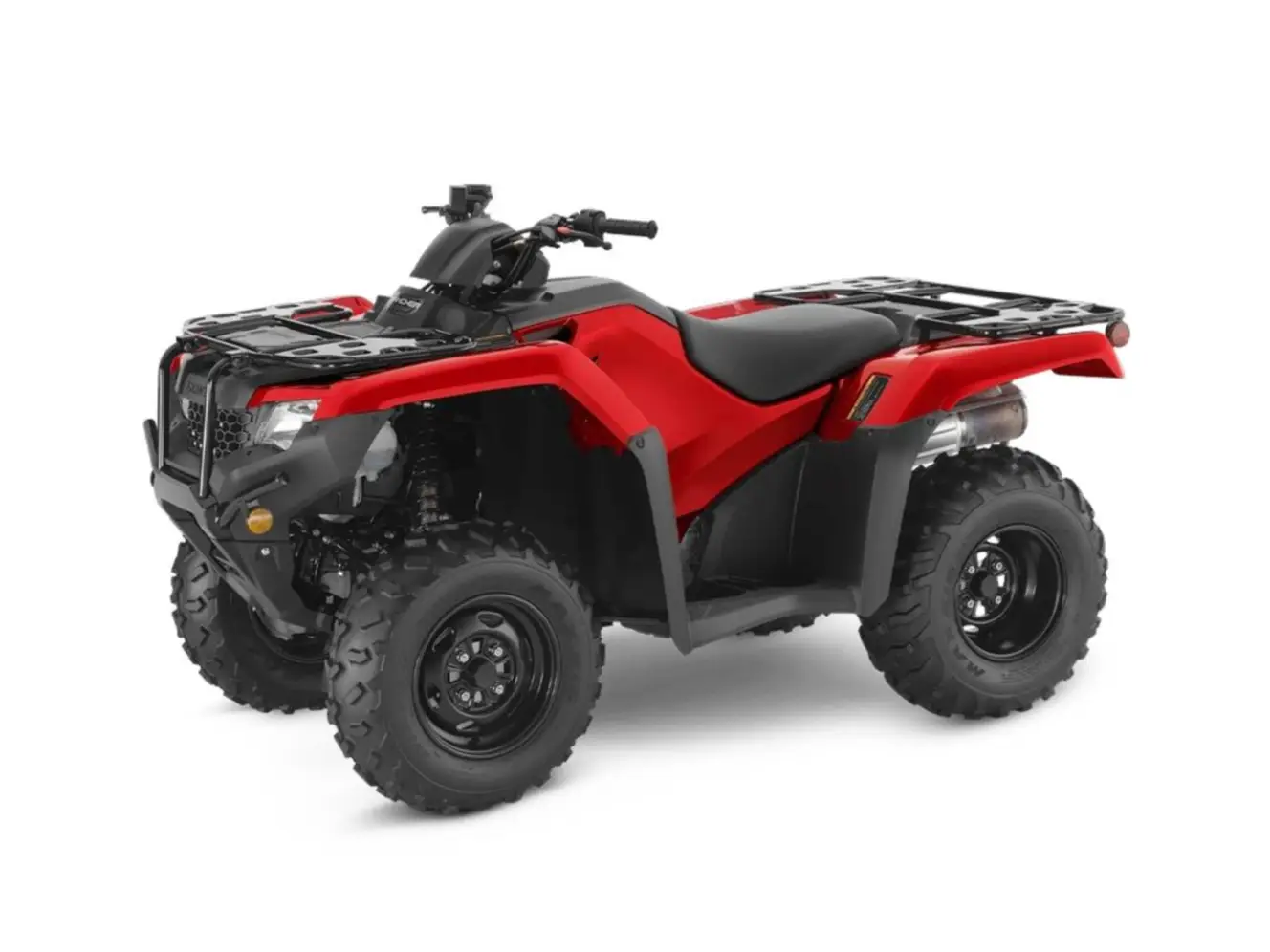

2026 Honda FourTrax Rancher is a new ATV built for dependable work and weekend trail time, and it s available now at MotoMember in Manassas, Virginia. Finished in bold Red, this Rancher delivers Honda s proven utility performance in a size that s easy to handle, easy to own, and ready for real-world chores.

Designed as a do-it-all 4x4-class utility ATV, the FourTrax Rancher is ideal for property owners, hunters, and riders who want a tough machine with straightforward controls and long-term reliability. With a fuel-injected 420cc engine, a five-speed manual transmission with reverse, and a tight turning radius, it s built to maneuver confidently around barns, trails, and tight work areas while still offering the muscle to tow and haul.

Key Features

- 420cc liquid-cooled single-cylinder four-stroke for strong, consistent performance across changing conditions
- PGM-FI fuel injection (34mm throttle body) for crisp throttle response and reliable starting
- Five-speed manual transmission with reverse paired with an automatic clutch for confident control without constant clutch work
- Independent double-wishbone front suspension and swingarm rear suspension, each with 6.7 inches of travel for comfort and traction on uneven terrain
- Dual 190mm front disc brakes for strong, predictable stopping power
- Direct rear driveshaft driveline for durability and low-maintenance utility use
- Work-ready racks with generous capacity for gear, tools, and supplies
- Excellent maneuverability with a 9.2-foot turning radius great for tight trails and job sites
- Meets current EPA and CARB off-road emissions standards

Specifications

- Model ID: TRX420TM1
- Engine: 420cc liquid-cooled longitudinally mounted single-cylinder four-stroke
- Bore x Stroke: 86.5mm x 71.5mm
- Compression Ratio: 9.9:1
- Valve Train: OHV; two valves per cylinder
- Fuel System: Programmed Fuel Injection (PGM-FI); 34mm throttle body
- Starter: Electric with optional auxiliary recoil
- Transmission: Five-speed manual with reverse
- Clutch: Automatic
- Driveline: Direct rear driveshaft
- Front Suspension: Independent double-wishbone; 6.7-inch travel
- Rear Suspension: Swingarm with single shock; 6.7-inch travel
- Front Brakes: Dual 190mm discs
- Rear Brake: 160mm drum
- Front Tires: 24 x 8-12
- Rear Tires: 24 x 10-11
- Length: 82.8 in
- Width: 47.4 in
- Height: 46.2 in
- Wheelbase: 50.0 in
- Seat Height: 33.7 in
- Ground Clearance: 7.1 in
- Curb Weight: 580 lb (includes required fluids and full tank)
- Fuel Capacity: 3.9 gal (including 1.3-gal reserve)
- Towing Capacity: 848 lb
- Front Rack Capacity: 66.0 lb
- Rear Rack Capacity: 133.0 lb
- Turning Radius: 9.2 ft
- Warranty: Transferable, one year included, limited warranty (extended coverage available with HondaCare®)
