Features and specs
VIN: 1HFVE0746T4104284
Stock #: 14560
Description
Displacement: 31.6 cu. in. (518 cc)
Bore and Stroke: Bore: 3.78 in. (96 mm); Stroke: 2.81 in. (71.5 mm)
Cooling: Liquid
Compression Ratio: 9.5:1
Fuel System: Gas
Front Suspension: Independent Double Wishbone
Front Brakes: Dual Hydraulic Disc
Front Tire: Maxxis 24 x 8-12
Rear Suspension: Independent Double Wishbone
Rear Brakes: Hydraulic Disc
Rear Tire: Maxxis 24 x 10-12
Wheelbase: 73 in. (1854.2 mm)
Front Travel: 5.8 in. (147.3 mm)
Rear Travel: 5.9 in. (149.9 mm)
Ground Clearance: 8.5 in. (215.9 mm)
Fuel Capacity: 4.1 gal. (15.5 L)
Box Capacity: 450 lbs. (204.1 kg.)
Towing Capacity: 1000 lb. (453.6 kg.)
Drive System: Manual / Automatic Clutch
Speedometer: Standard
Odometer: Standard
About the dealership
How do we stay small and sell big? It's simple: years of experience. At LAND AIR, our mission is to offer you the latest in parts and products at the best prices, and with unparalleled service. We pledge to use our best efforts to make your experience both beneficial and enjoyable. Once you give us a try, we’re sure you'll be back for more!
Resources
ATV Trader disclaimer: The information provided for each listing is supplied by the seller and/or other third parties. ATVTrader.com is not responsible for the accuracy of the information. Please refer to the ATV Trader Terms of Use for further information.
Vehicle photos displayed on this page may be AI-enhanced. AI-generated content isn't always correct, so please contact the seller to verify all details.

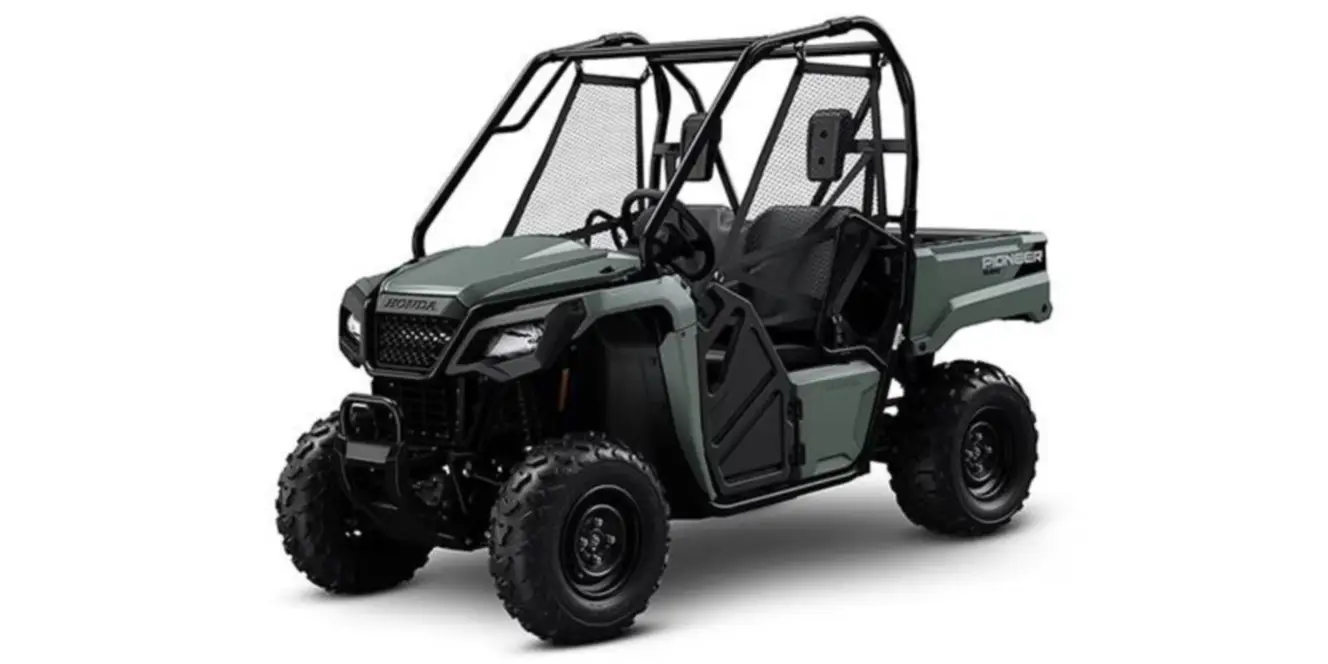

2026 Honda Pioneer 520 Base
